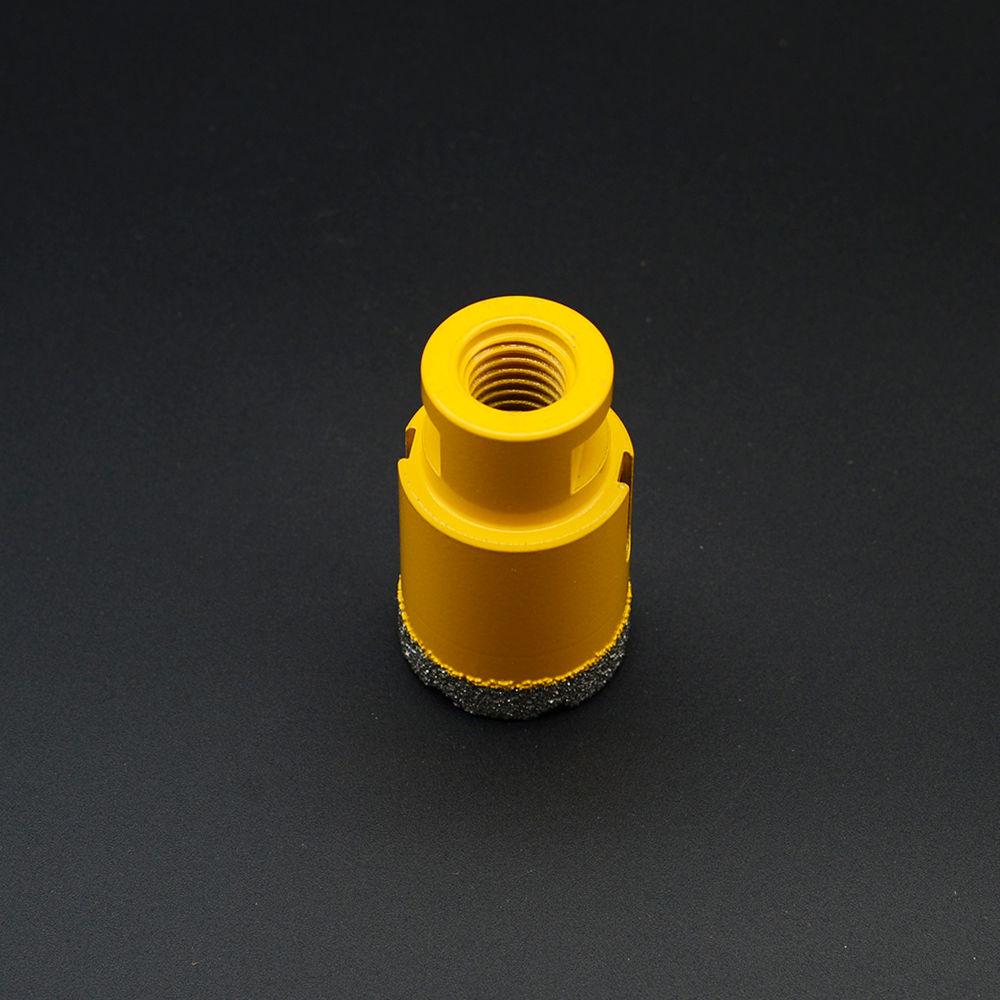

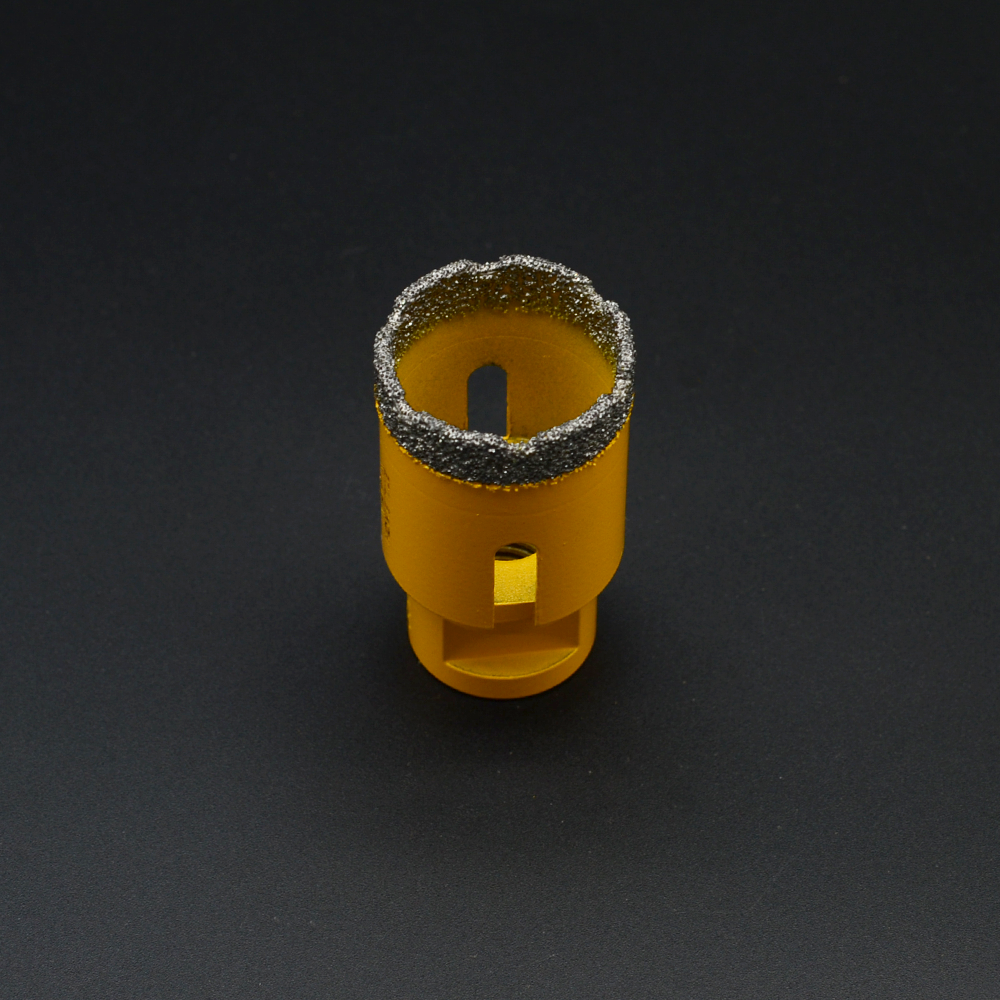

HT Diamond Core Drill Bit – 35 mm (1-3/8″)

The HT 35 mm (1-3/8″) Diamond Core Drill Bit is a high-performance professional tool designed for high-speed drilling in the toughest materials. This specific size is the industry standard for creating precise holes for faucet supply lines, shower heads, and standard water pipes in porcelain and natural stone.

Technical Features

• Vacuum Brazed Diamonds: Advanced vacuum brazing technology ensures an incredibly strong bond between the diamond grit and the steel core, resulting in faster cutting and a significantly longer lifespan.

• Strictly Dry Operation: Engineered specifically for dry use at high RPMs. This allows for professional results on-site without the need for water cooling systems or messy cleanup.

• Universal Compatibility: Comes with a standard 5/8″-11 female thread, making it ready to use with any standard North American angle grinder.

• Heat Dissipation: The high-grade steel body and diamond matrix are designed to manage heat efficiently, preventing the bit from burning out during continuous use.

Specifications

• Diameter: 35 mm (1-3/8″).

• Mount: 5/8″-11 female thread.

• Operating Mode: Strictly Dry use only.

• Max Drilling Depth: 40 mm (1-1/2″).

• Recommended Speed: 10,000 – 11,000 RPM.

• Materials: Porcelain, Ceramic, Granite, Marble, and Hard Stone.
